Custom abrasive belts
TECHNOLIANTIKI converts coated abrasives into belts for metal and wood sanding machines. Specify length, width, workpiece, machine and intended process stage.
Where it helps
Made to the application dimensions with a choice of abrasive and grit.
What to consider
Incorrect dimensions, running direction or support can reduce life and safety. Confirm the machine specification.
Catalogue range and selection
- The metal sanding range includes BORA 7 ceramic belts and PZ533 zirconia belts. Choose according to workpiece material, operating pressure and required finish.
- Measuring an endless sanding belt: measure its width and total circumference. If measured laid flat, double its folded length. State width first, for example 600 × 2,200 mm.
- For an order, provide width × length, workpiece, machine, grit and quantity. Pages 52, 54 and 55 cover joint types, minimum quantities by width and ordering instructions.

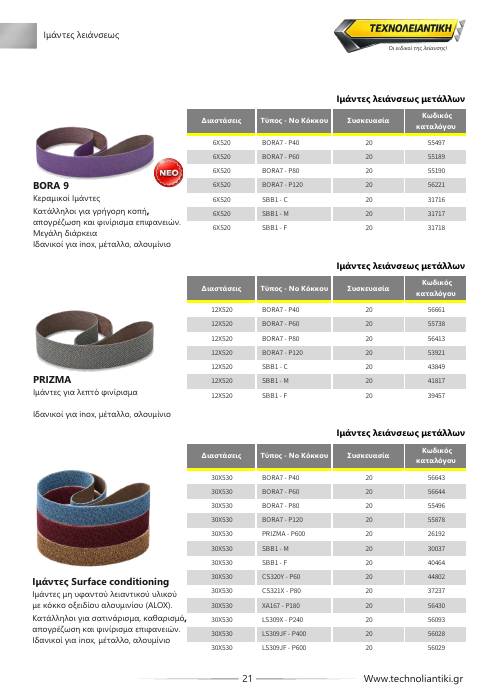

Catalogue pages: 21 · 22 · 23 · 52 · 54 · 55
Related category: Coated abrasive rolls
How to specify a replacement sanding belt
Give the width × length in mm and your machine model. If you know the series or grit of your existing belt, include the exact marking on the backing.
For stainless steel, distinguish stock removal from satin finishing: the ceramic BORA 7 is for stock removal, while the non-woven SBB1 is for satin finishing and cleaning. Check the table for listed size and grit combinations.
Need help choosing?
Describe your material, machine and task, and we can suggest a suitable option.
Contact usTechnical specifications
Selected combinations from the 2026 catalogue. Follow the page links for more sizes and product codes. Confirm current availability with us.
| Series / model | Size / specification | Grit / grade | Properties and applications | Catalogue |
|---|---|---|---|---|
| BORA 7 | 6 × 520; 12 × 520; 30 × 530 mm | P40, P60, P80, P120 | Ceramic belt for stock removal and deburring on metal, stainless steel and aluminium. | p. 21 |
| PRIZMA | 30 × 530 mm | P600 | Fine finishing belt for metal, stainless steel and aluminium. | p. 21 |
| SBB1 | 6 × 520; 12 × 520 mm | C, M, F | Non-woven belt for satin finishing and cleaning. C: coarse, M: medium, F: fine. | p. 21 |
| PZ533 | 100 × 316 mm | P40, P60, P80 | Coated zirconia for steel and stainless steel. | p. 22 |
| PZ533 | 150 × 1,900; 200 × 1,900 mm | P40, P60, P80, P120 | These sizes are listed on demand. | p. 23 |
| EKA1000F | 900 × 1,900 mm | P80, P120, P180 | Wide reinforced-paper belt for softwood and furniture manufacturing. On demand. | p. 23 |
